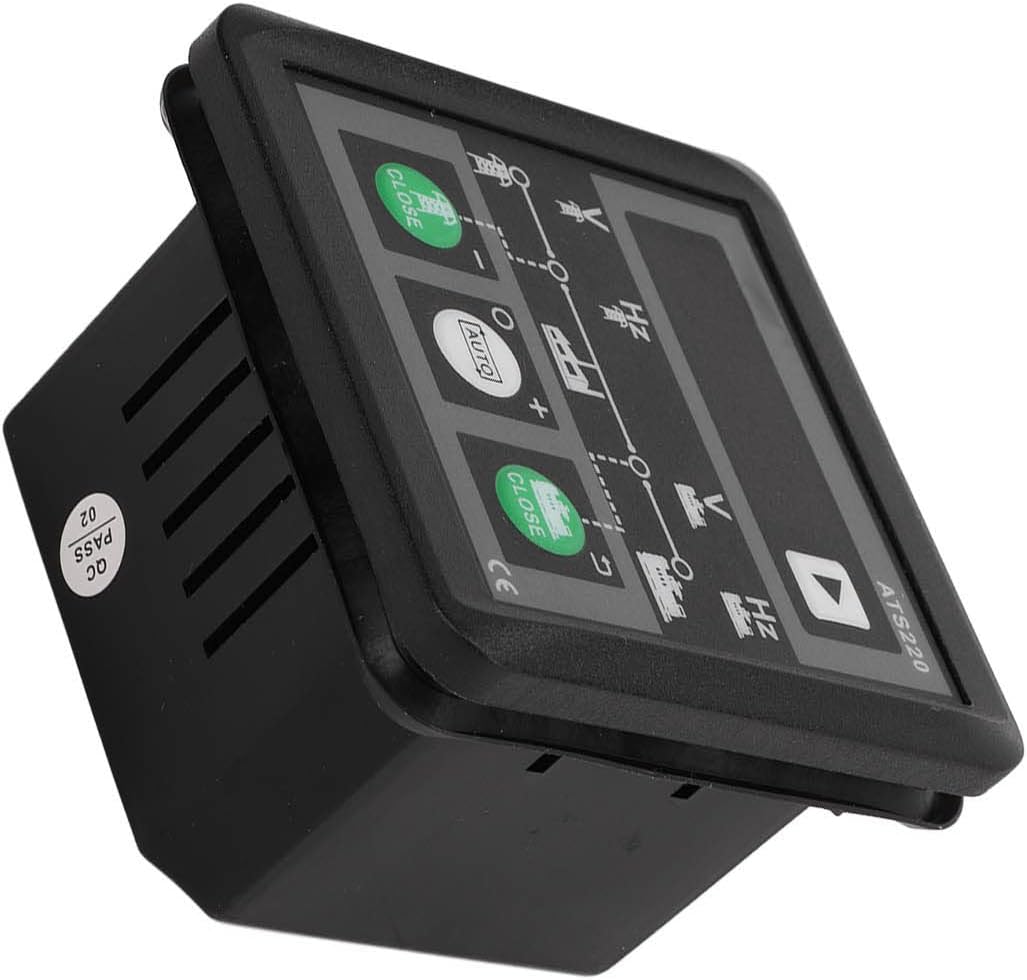

ATS220 AC30-300V Mains Genset Power Controller with LED Display & Automatic Switch for Easy

1. LED Display: Equipped with 4 digit LED digital tube, it can clearly display the voltage and frequency of mains and power generation. 2. Mains Genset Automatic Switching Controller: It has the function of simulating mains and can flexibly select the starting conditions of the unit. 3. IP54 Protection Level: With standard rings, the protection performance of the panel after installation reaches IP54 level. 4. Easy To Control: Dual power switch controller, all parameters can be set directly through the panel keys, easy to operate. 5. Simple Assembly: Modular design, all connections are completed through European terminal blocks, which is convenient for installation. Specification: Item Type: Genset Power Controller Material: ABS Model: ATS220 Purpose: Power Switch Control Display: LED Parameter Item Parameter Range (Default Value) Mains Normal Delay 0-6500s (10s) Mains Abnormal Delay 0-6500s (5s) Normal Power Generation Delay 0-6500s (10s) Generator Set Start Up Delay 0-6500s (1s) Generator Set Shutdown Delay 0-6500s (5s) Closing and Opening Pulse Width 1.0-10.0s (10.0s) Conversion Interval Delay 0-3600.0s (1.Os) Over Conversion Delay 0-20s (20s) Mains Low Voltage Trip Value 55-330V (184V) Mains Low Voltage Return Value 55-330V (207V) Mains High Voltage Trip Value 55-330V (276V) Mains High Voltage Return Value 55-330V (253V) Generator Over Frequency Alarm Value 40-80.0Hz (57.0Hz) Generator Under Frequency Alarm Value 0-70.0Hz (40.0Hz) Generator Overvoltage Alarm Value 0-360V (264V) Generator Undervoltage Alarm Value 0-360V (192V) Closed State Input Enable 0-Disabled Indicating Name Main Function Mains Voltage Indication Indicates that the current display is the mains voltage E, when the load is switched to the mains, it will automatically display the mains voltage Mains Frequency Indication Indicates that the current displayed parameter value is the mains frequency Power Generation Voltage Indication Indicates that the current display is generating voltage, when the negative line is switched to generating, it will automatically display the generating voltage Generating Frequency Indication Indicates that the current displayed parameter value is the power generation frequency Mains Status Indication Always on when the mains power is normal, flashing when low-voltage and high voltage alarms, and off when there is no mains power Mains Closing Instruction Lights up when mains closing is effective Power Generation Status Indicator Always on when power generation is normal, flash when low and high voltage alarms, and go out when there is no mains power Power Generation Closing Instruction Lights up when the power generation closing is effective. Auto Mode Indication Lights up when working in automatic mode, and goes off when working in manual mode packing list: 1 x Controller 2 x Terminal 2 x Fixer 1 x Manual Notice: Keep away from open flames.

• Automatic Switching - Our innovative Mains Genset Automatic Switching Controller simulates mains power, enabling it to adaptively select starting conditions based on your specific requirements. This flexibility ensures seamless transitions between power sources without interruptions, safeguarding sensitive equipment and optimizing performance. With intelligent control, you no longer have to worry about power reliability, as this controller maximizes convenience and .
• IP54 - Designed for durability, this power controller boasts an IP54 rating, ensuring resilience and splashes. Encased in a robust housing with standard rings, it effectively safeguards internal components from factors, thus prolonging service life. Installed in various outdoor settings or electrical rooms, this advanced system provides confidence and reliability in any situation.
• User-Friendly Control - Operating the ATS220 is a breeze with its dual power switch controller. Users can conveniently set parameters directly via the panel keys, making it highly accessible even for those who are not technology savvy. This intuitive design ensures that you can easily navigate settings and manage your power sources without extensive training, thereby saving time and reducing frustration.
• Modular Assembly - Featuring a modular design, our power controller simplifies installation procedures. connections can be effortlessly completed using European terminal blocks, which facilitates quick and intuitive assembly. This user-centric approach not only enhances installation speed but also reduces complexity, allowing you to set up your power management system efficiently. Whether for home or industrial applications, this straightforward assembly process is a game changer.
• LED Display - The ATS220 AC30-300V Mains Genset Power Controller features a four-digit LED digital tube, enabling users to effortlessly view the voltage and frequency of both mains and power generation in real-time. This intuitive display minimizes ambiguity, allowing for quick assessments and decisions during crucial power management operations. Stay informed about your power status and enhance your operational efficiency with this advanced monitoring solution.
